Elbows

FastClamp elbows for galvanised handrail tube are available here in sizes 3/4″ (20mm) – 2” (50mm), this includes a range of fixed and variable angle elbows as well as sloping elbows. The range consists of the C02, C05, C05A, C20, C21, C201, C50, C72 and the C72A handrails elbows.
All FastClamp handrail fittings are made of HDG galvanised malleable cast iron to BS EN 1562 and are installed with BS EN 10255 handrail tubes using the included grub screws, no special tools are required, just a standard Allen key

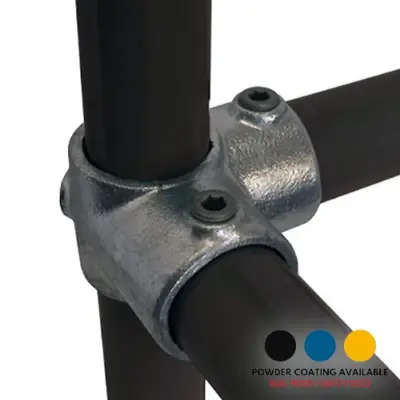

Fastclamp C21 Galvanised Corner with Through Tube

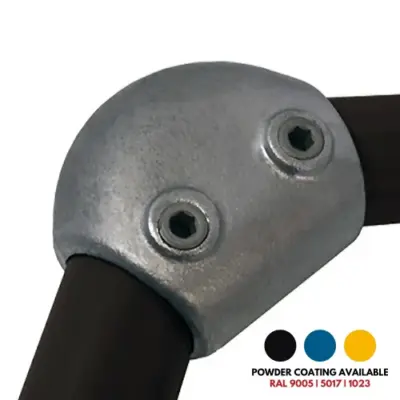

Fastclamp C05 Galvanised Variable Elbow (15 – 60°)
Fastclamp C02 Galvanised 90 Degree Elbow

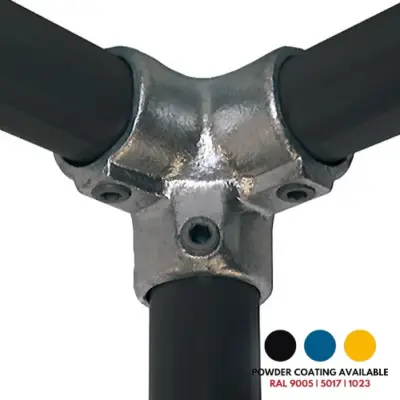

Fastclamp C20 Galvanised 3-Way 90 Degree Elbow
Fastclamp C50 Galvanised 90 Degree Slope Elbow (0 – 11°)

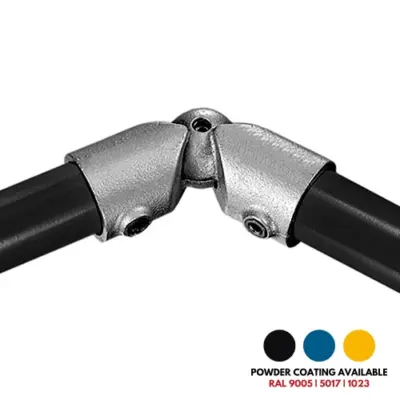

FastClamp BC05 Galvanised Swivel Elbow
Fastclamp C05A Galvanised Variable Elbow (11 – 30°)

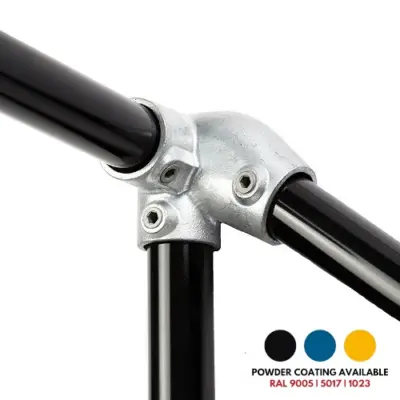

Fastclamp C201LH Galvanised Left Hand Level To Sloping Down Side Outlet Elbow (30 – 45°)

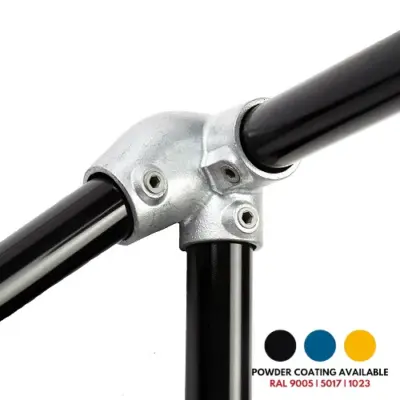

Fastclamp C201RH Galvanised Right Hand Level To Sloping Down Side Outlet Elbow (30 – 45°)

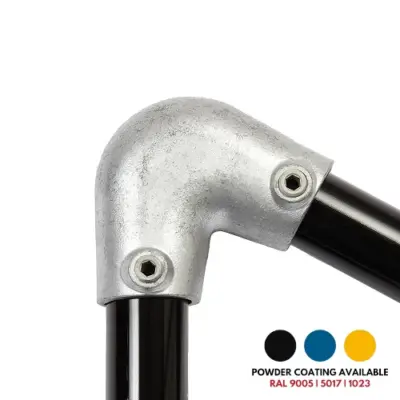

Fastclamp C72A Galvanised Acute Angle Elbow (11 – 30°)

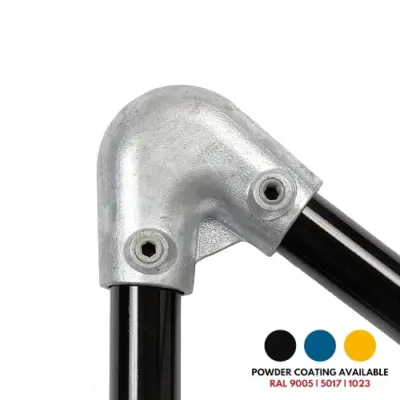

Fastclamp C72 Galvanised Acute Angle Elbow (30 – 45°)
