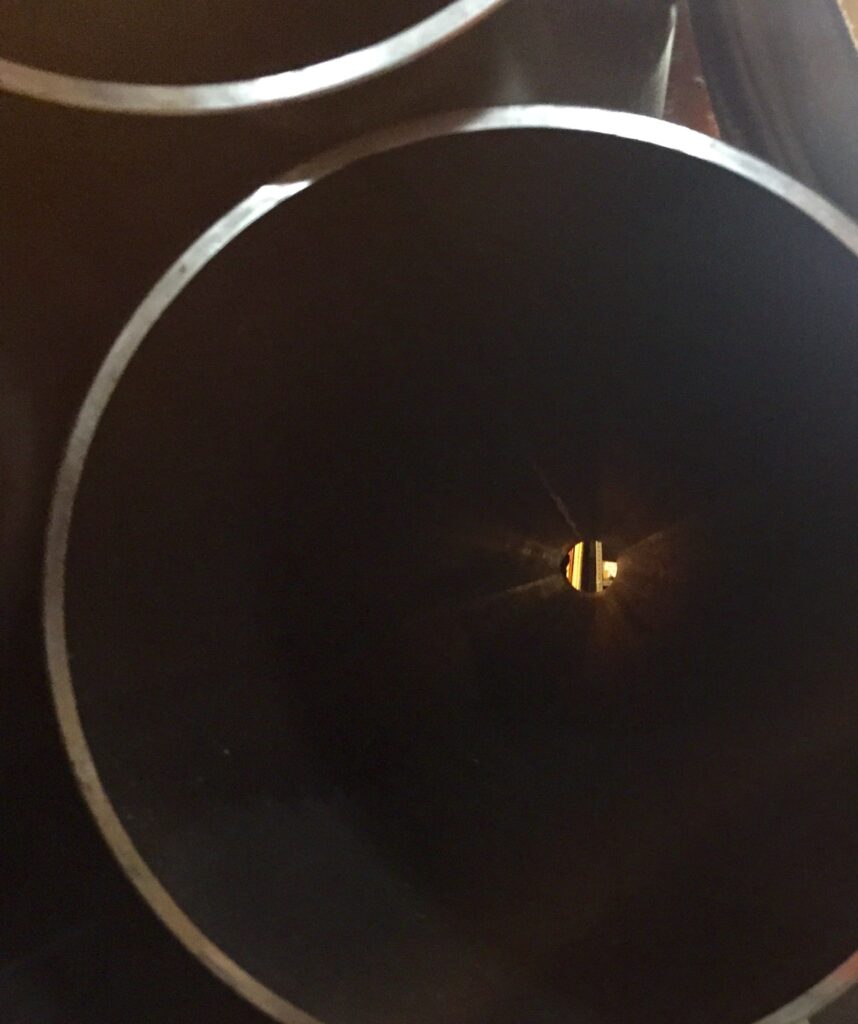

Seamless Steel Tube ASTM A106 Grade B

Besseges (VTF) Ltd have been a stockholder of seamless steel tubes to ASTM A106 grade B for over two decades, this tube range is better known to many as quality tubes. The seamless steel tube has many uses and covers a wide range of pressures and temperatures depending on the fittings, flanges, valves and of course the wall thickness of the tube. The range of wall thicknesses is denoted in schedules, for instance, ASTM A106 hot-finished seamless steel tube schedule 40 in size 150mm nominal bore has a 7.11mm wall. For a complete guide to sizes and wall thickness please download our data sheet available on the Downloads and Calculators page. For each schedule available whether 40, 80 or Schedule 160 there are varying maximum pressures depending on the temperature of the medium being carried, this table can also be found on the same page as the details on wall thickness. The certainty is as the temperature increases the maximum working pressure reduces and then there is the choice of fittings and flanges, for instance, schedule 40 seamless steel tubes with flanges to ASME B16.5 (ANSI) rated to 150lb is restricted to the pressures and temperatures range of the flanges, for a fuller picture on temperatures and pressures associated with any of our products, please contact our sales team.

Seamless Steel Tube a Short History

Seamless steel tube has been manufactured for over a century, looking back at the history of standards we recognise it appears that the first standard was to API 5L First Edition 1928, this pipe standard was published by the American Petroleum Institute which came into being in 1924 to standardise materials and specifications for the oil and gas industry in the United States. For a fuller history of this organisation please follow the highlighted link to visit their Website’s history page, their history can be traced back to WW1 when they worked with the United States Congress to standardise specifications to aid in the war effort. Other similar standards are covered under ANSI B63.10-1936; the current edition of this comes under ASME/ANSI B36.10-2004, reaffirmed in 2010. The first seamless British Standard tube was BS 53:1913; this was cold drawn weld-less boiler tube for use on steam locomotives. The equivalent to the modern-day seamless steel tube was BS3601:1962 which has now been superseded by BS EN 10216-1:2013. The original API 5L specification is now on the 45^th edition of the standard and we can provide dimensional, pressure and temperature information for any of these products, please contact us for your next seamless steel tube requirement.

Seamless Steel Tube Certification

Whichever specification of seamless steel tube your business requires whether you are looking for API 5L, ASTM A106 Grade B or ANSI/ASME B36.10 here at Besseges (VTF) Ltd we can provide the material and the test certification to 3.1b. Fully traceable high-quality material is guaranteed for every delivery and we look forward to aiding your business now and in the future. Other grades of the tube for less rigorous installation requirements can also be found here at Besseges including medium and heavy tube BS EN 10255:2004 which is available in threaded and plain end versions, this tube is only available with mill vertificates and does not offer the full traceability as the seamless steel tube we carry in stock although the quality is still assured as with all the products we offer. Please contact us for all your valve and pipeline requirements.
